The GS-819-R is a robust automatic vehicle access barrier engineered for controlled entry and exit where overhead clearance is limited. Its L-bend retractable boom mechanism provides vertical folding movement while maintaining reliable access control for parking, commercial, residential and industrial sites.

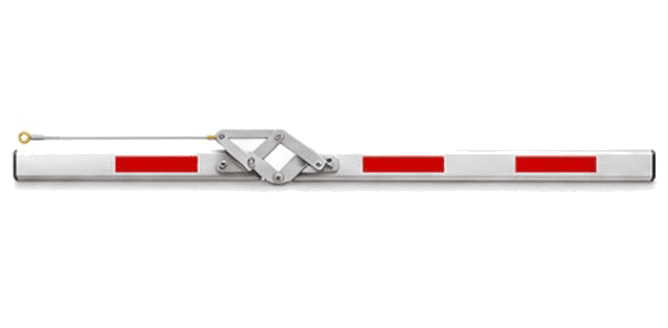

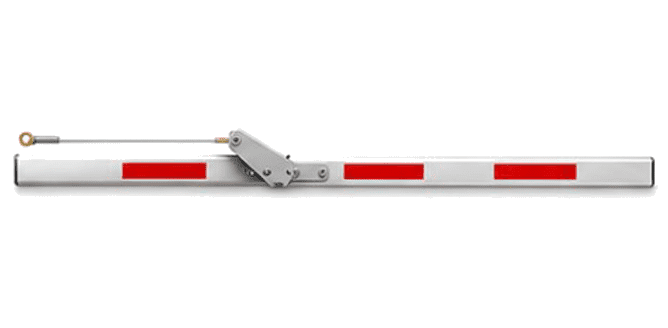

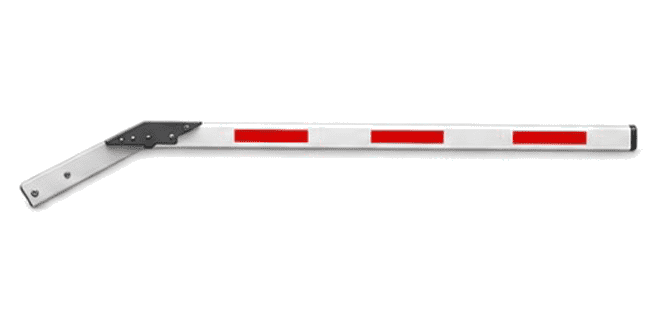

• L-Bend Retractable Boom: Vertical folding design minimizes overhead clearance requirements
• Extended Barrier Coverage: Supports boom lengths up to 6 metres
• Motor Technology Supported: Safe, efficient barrier movement - Brushless Motor - DC Motor - AC Motor - Servo Motor
• Adjustable Operating Speed: 1.5–3 seconds opening/closing cycle
• High-Cycle Performance: Designed for 5+ million operating cycles
• IP54 Protection: Protection against dust and water ingress for indoor/outdoor applications
• Drive System: Available across a broad range of rated power outputs, from 100 W and 200 W upward, each configured to the lane width, traffic volume and duty cycle of the installation
• Wireless Remote Operation: Up to 30 m control range, with 2 remote controls
• Heavy-Duty Housing: 1.5 mm Mild Steel construction with powder-coated finish
• High Visibility Finish: Yellow housing and boom arm provide clear visual identification
• Wide Temperature Range: Operating capability from −35°C to +65°C
• Customizable Configuration: Housing size and barrier specifications can be adapted to project requirements

Type

Automatic L-Bend / Retractable Boom Barrier

Model

GS-819-R

Drive

Brushless / DC / AC / Servo Motor

Boom

Retractable L-Bend Arm

Maximum Boom Length

Up to 6 m

Operating Voltage

DC 24V

Rated Power

100 W up to 200 W Above (available as customised)

Protection Rating

IP54

Cycle Life

5 Million + Cycles

The GS-819-C Automatic Boom Barrier is a high-performance vehicle access control system engineered for rapid, reliable and high-cycle operation. Featuring a DC servo motor, carbon-fiber boom arm and IP54-rated housing, it provides precise barrier movement for demanding parking, commercial, industrial and secured-entry applications.

• High-Speed Operation: Adjustable opening/closing time from 0.3–1 second
• Servo Motor Drive: High-precision DC servo motor for smooth and responsive operation
• Heavy-Duty Performance: Rated for 10+ million operating cycles
• Carbon-Fiber Boom Arm: Lightweight, rigid and optimized for high-speed movement
• Boom Length: Suitable for barriers up to 4 metres
• IP54 Protection: Designed for reliable indoor and outdoor deployment
• Wireless Remote Control: Up to 30 m operating range, with 2 remote controls
• Robust Housing: 2.0 mm Mild Steel enclosure with powder-coated finish
• Operating Temperature: −35°C to +65°C
• Low-Voltage Architecture: DC 36V operating system
• Customizable: Boom length, housing dimensions and finish can be adapted to project requirements

Type

Automatic High-Speed Servo Boom Barrier

Model

GS-819-C

Technology

DC Servo Motor + Carbon-Fiber Boom Arm

Protection

IP54

Maximum Boom Length

Up to 4 m

The GS-819-S is a high-performance automatic vehicle barrier designed for flexible lane-width management and reliable access control. Its telescopic boom arm, brushless motor drive and IP54-rated construction provide smooth, durable operation across parking, commercial, residential and secured-access environments.

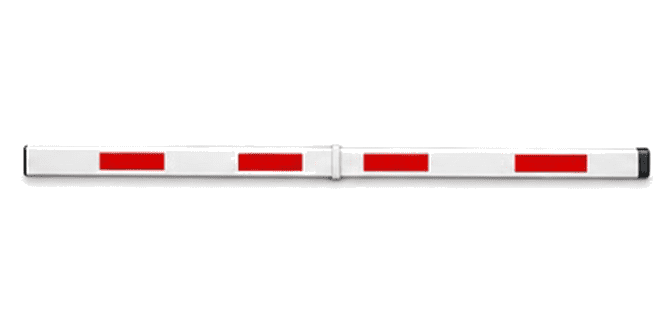

• Telescopic Boom Arm: Adjustable barrier length from 2–6 m for different lane widths
• Brushless Motor Drive: Smooth, stable and efficient operation with reduced maintenance
• Adjustable Speed: Opening/closing time configurable from 3–6 seconds
• High-Cycle Performance: Rated for more than 5 million operating cycles
• IP54 Protection: Suitable for indoor and sheltered outdoor installations
• DC 24V / 100W: Efficient low-voltage drive system
• Wireless Remote Control: Up to 30 m range, with 2 remote controls
• Heavy-Duty Housing: 1.5 mm Mild Steel construction with powder-coated finish
• High-Visibility Housing: Yellow finish provides clear identification at vehicle entry points
• Operating Temperature: −35°C to +65°C
• Customizable: Housing dimensions and colour can be configured for project requirements

Type

Automatic Telescopic Boom Barrier

Model

GS-819-S

Drive Technology

Brushless Motor

Boom Type

Telescopic Boom Arm

Adjustable Boom Length

2–6 m

Operating Voltage

DC 24V

Rated Power

100 W

Protection Rating

IP54

Cycle Life

5 Million + Cycles

The GS-918-S is a compact, solar-powered automatic boom barrier engineered for continuous and reliable vehicle access management. Its solar power system, robust metal construction, rapid barrier movement and 5+ million cycle lifetime make it suitable for demanding parking, commercial, residential and industrial applications.

• High-Cycle Performance: Rated for 5+ million operating cycles for long-term intensive use
• Rapid Operation: Adjustable opening/closing time from 1.5–3.5 seconds
• Solar Power System: Solar-powered operation with a full-charge endurance of ≥12,000 lifting & lowering cycles
• DC 24V Power System: Low-voltage architecture with 21B / 100W motor power
• 2.4 GHz Wireless Control: Remote operation with a control range of up to 30 m
• Robust Metal Housing: 1.5 mm Mild Steel construction for mechanical durability
• Compact Footprint: Designed for space-efficient installation at vehicle access points
• Wide Temperature Operation: Suitable for environments from −30°C to +80°C
• Powder-Coated Finish: Durable surface treatment for long-term equipment protection
• Dual Remote Controls: Supplied with 2 wireless remote controls
• Reliable Traffic Management: Supports controlled and efficient vehicle entry and exit

Type

Solar-Powered Automatic Boom Barrier

Power Source

Solar

Model

GS-918-S

Operating Voltage

DC 24V

Motor Power

21B / 100W

Operating Speed

1.5–3.5 seconds, adjustable

Lifetime

5 Million + Cycles

Full-Charge Endurance

≥12,000 Lifting & Lowering Cycles

Remote Frequency

2.4 GHz

Remote Range

≤30 m

Housing

1.5 mm Mild Steel, Powder Coated

Operating Temperature

−30°C to +80°C

The GS-918 ADS is a multifunctional Advertising Boom Barrier that combines automated vehicle access control with a large-format LED advertising display. Designed for high-visibility installations, it controls vehicle movement while providing a platform for branding, promotions and digital communication.

• Integrated LED Advertising Panel: Large-format digital display for advertisements, branding, promotions and site information
• Access Control + Advertising: Combines vehicle barrier functionality with a revenue-generating digital media platform
• Brushless Motor Drive: Smooth, efficient and low-maintenance barrier operation
• Adjustable Operation: 3–6 seconds opening/closing speed for controlled vehicle passage
• High-Cycle Performance: Designed for 5+ million operating cycles
• IP54 Protection: Provides protection against dust and water ingress
• DC 24V / 200W Power System: Stable low-voltage operating architecture
• Wireless Remote Control: Up to 30 m range, supplied with 2 remote controls
• Robust Housing: 1.5 mm Mild Steel construction with powder-coated finish
• Large Display Structure: Approx. 3600 × 750 mm advertising panel configuration
• Professional Steel-Grey Finish: Suitable for modern commercial and parking environments
• Customizable Configuration: Display structure, housing, finish and system configuration can be adapted to project requirements

Type

Advertising Boom Barrier (ADS Boom Barrier)

Model

GS-918 ADS

Drive Technology

Brushless Motor

Advertising System

Integrated LED Advertising Panel

Barrier Arm

1 m

Display Structure

Approx. 3600 × 750 mm

Operating Voltage

DC 24V

Rated Power

200 W

Operating Speed

3–6 seconds, adjustable

Protection Rating

IP54

Cycle Life

5 Million + Cycles

Remote Range

≤30 m

The 819-LT is an advanced automatic boom barrier engineered for efficient vehicle entry and exit management in commercial, industrial, residential and parking environments. It combines a brushless motor drive, illuminated LED boom arm and dynamic text display for reliable operation and clear visual communication.

• LED Text Display Boom Arm: Integrated LED display for configurable WELCOME / THANK YOU messages and directional indications
• Brushless Motor Drive: Provides smooth, efficient and reliable movement with reduced maintenance requirements
• Adjustable Operating Speed: Configurable 3–6 seconds opening/closing cycle
• High-Cycle Performance: Designed for more than 5 million operating cycles
• Extended Boom Length: Supports barrier arms up to 4 metres for wider vehicle lanes
• IP54 Protection: Weather-resistant construction against dust and water ingress
• DC 24V Operation: Efficient low-voltage system with 100 W power rating
• Wireless Remote Control: Up to 30 m range, supplied with 2 remote controls
• Heavy-Duty Housing: 1.5 mm Mild Steel construction with durable powder-coated finish
• Wide Operating Temperature: Suitable for −35°C to +65°C environments
• Customizable Configuration: Housing dimensions, colour and barrier configuration can be adapted to project requirements

Type

Automatic LED Boom Barrier with Text Display

Model

819-LT

Drive

Brushless Motor

Boom Arm

LED Arm with Text Display

Maximum Boom Length

Up to 4 m

Operating Voltage

DC 24V

Rated Power

100 W

Protection

IP54

Cycle Life

5 Million + Cycles

The GS-819-L is a professionally engineered automatic boom barrier designed for controlled vehicle entry and exit across medium- to wide-span access lanes. Its brushless motor, illuminated LED boom arm and IP54-rated housing provide dependable operation, enhanced visibility and long service life in demanding access-control environments.

• Long-Span Operation: Supports boom arm lengths up to 5 metres

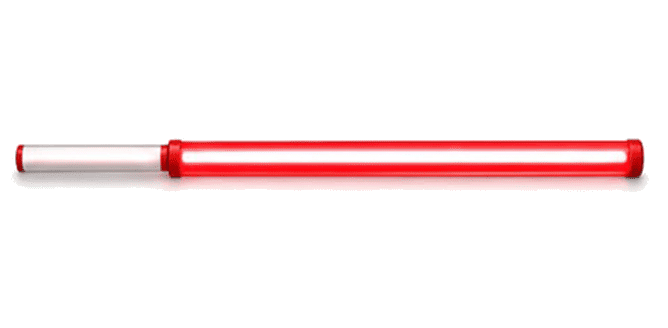

• LED Boom Arm: Integrated LED illumination for enhanced visibility and clear barrier-status indication
• Brushless Motor: Efficient, smooth and low-maintenance drive system
• Adjustable Speed: Opening/closing time configurable from 3–6 seconds
• High-Cycle Performance: Rated for 5+ million operating cycles
• IP54 Protection: Suitable for indoor and outdoor vehicle access applications
• Wireless Remote Control: Up to 30 m range, with 2 remote controls
• DC 24V System: Low-voltage operating architecture with 100 W power rating
• Heavy-Duty Housing: 1.5 mm Mild Steel construction with powder-coated finish
• Wide Temperature Range: −35°C to +65°C
• Customizable Design: Housing dimensions, colour and configuration can be adapted to project requirements

Type

Automatic Boom Barrier

Model

GS-819-L

Drive

Brushless Motor

Boom Arm

LED Boom Arm

Maximum Boom Length

Up to 5 m

Operating Voltage

DC 24V

Rated Power

100 W

Protection Rating

IP54

Cycle Life

5 Million + Cycles
